Overview​

Blocks Cloud provides powerful tools for managing and monitoring your services:

  • Logs: View and filter logs for your services, analyze issues, and ask AI for insights.
  • Traces: Monitor service traces, filter by date or service name, and analyze detailed trace timelines.

Logs​

Logs provide detailed records of events and actions within your services. They help you debug issues, monitor activity, and ensure your services are running smoothly.

Key Features

  • Filter Logs: Filter logs by date or log level (INFORMATION, WARNING, ERROR).
  • Search Logs: Use the search bar to find specific log entries.
  • Ask AI: Get insights and answers about your logs using AI.

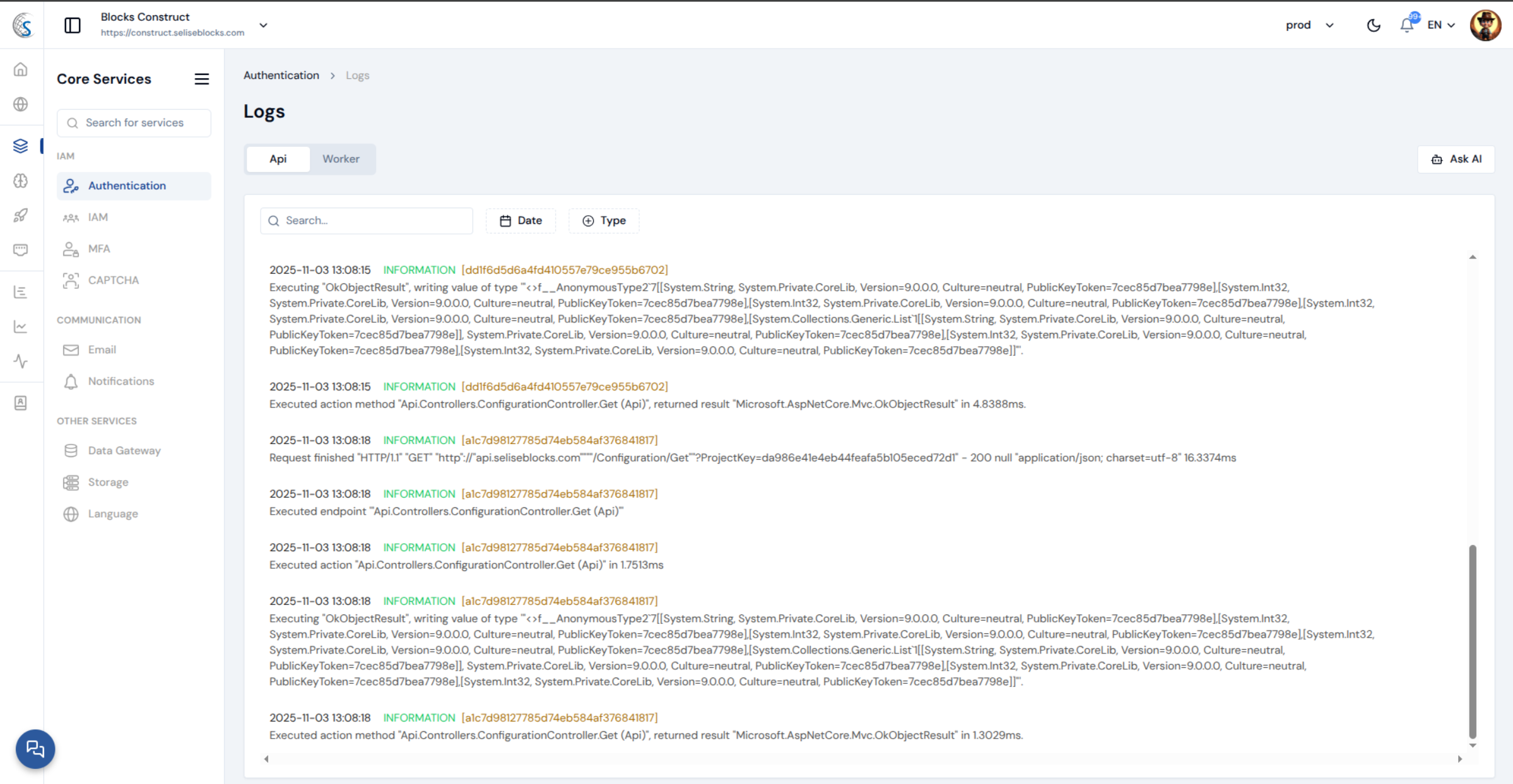

Viewing the Logs​

Navigate to Services → Logs. LMT Select the service you want to view logs for (e.g., Authentication, IAM, Storage).

Click on a log entry's trace id to view its details.

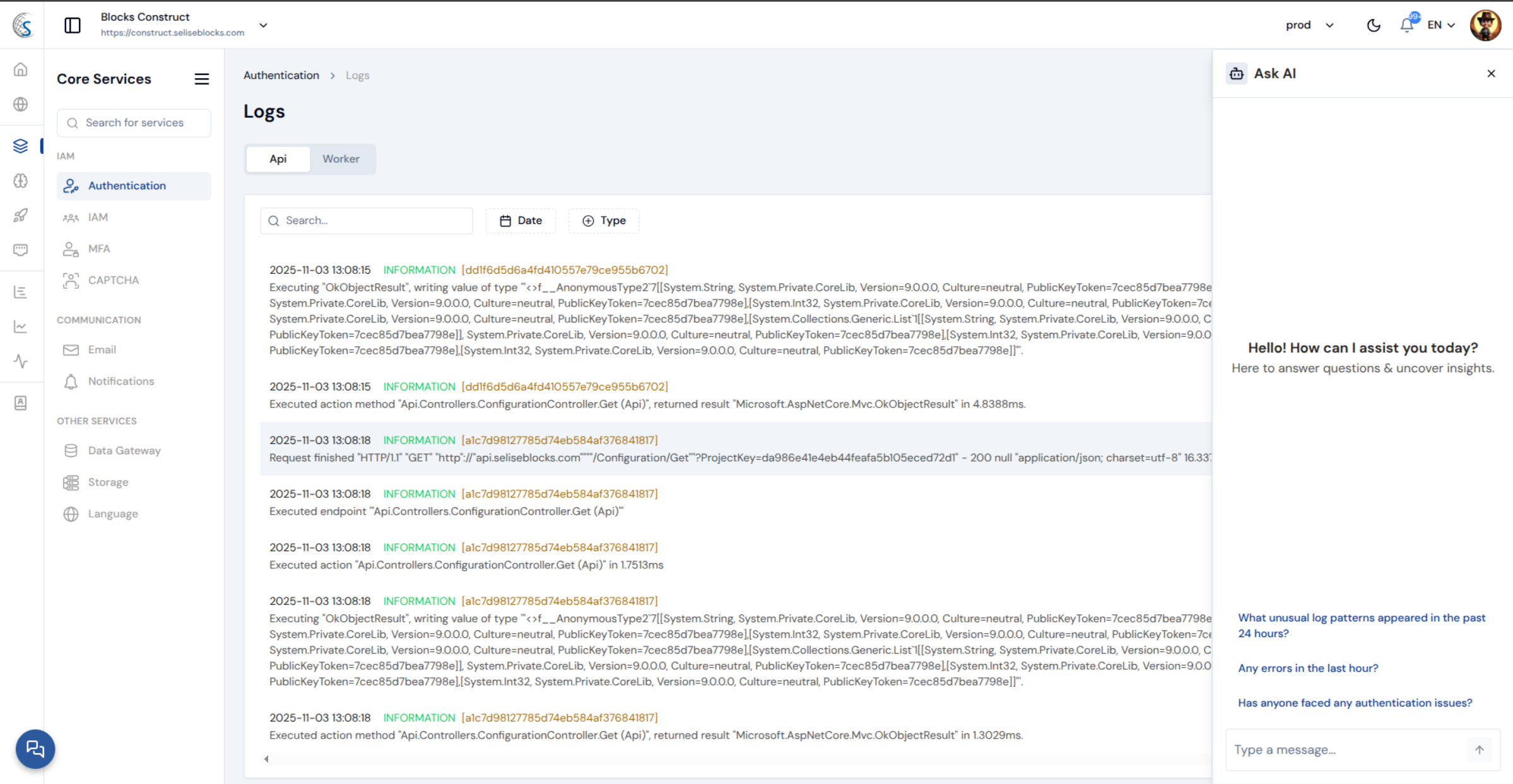

Using AI for Log Analysis​

Open the Ask AI panel on the right. tracing

Type your query.

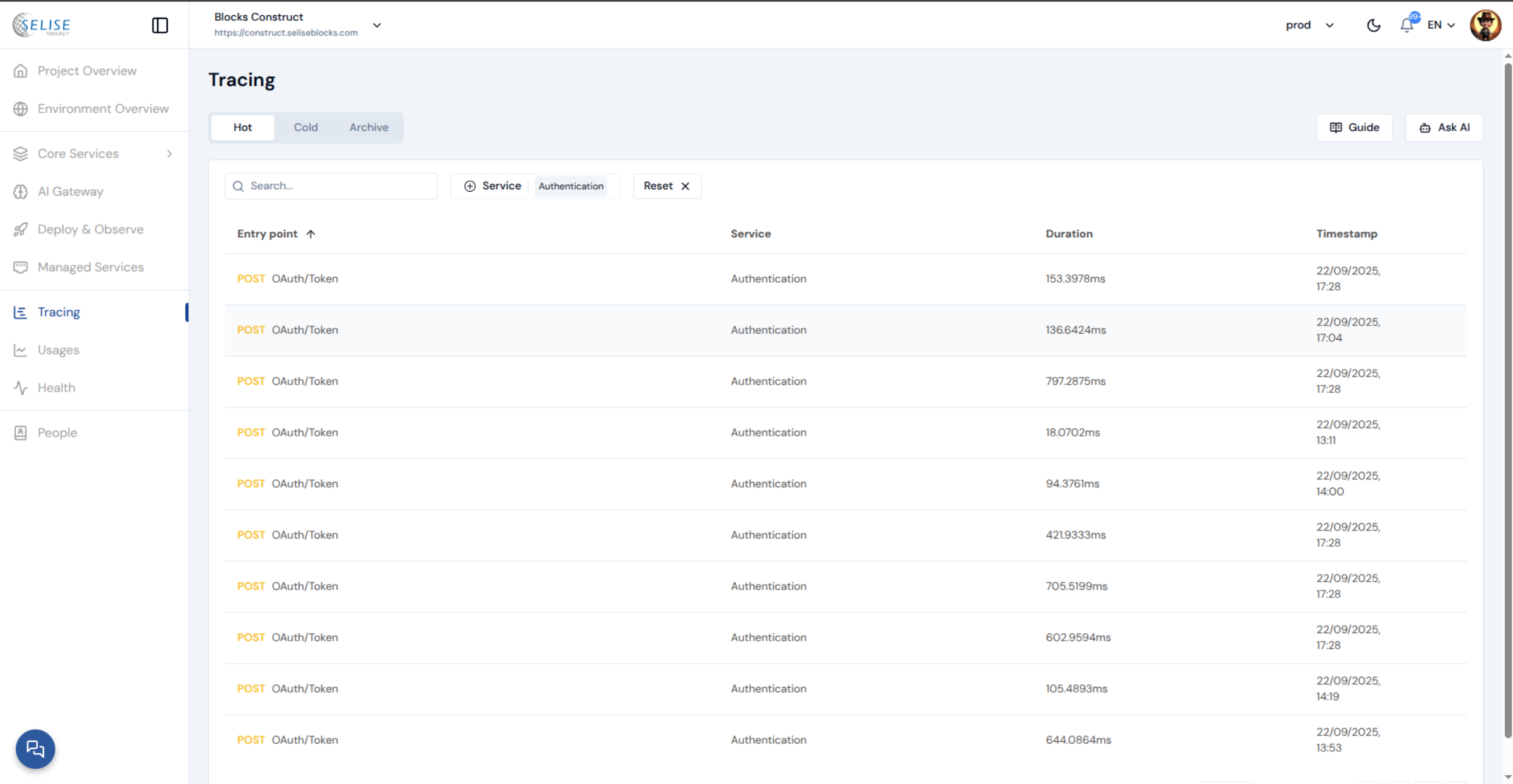

Traces​

Traces provide a timeline of requests and actions within your services. They help you monitor performance, identify bottlenecks, and debug issues.

Key Features

  • Trace List: View all traces for your services.
  • Filter Traces: Filter traces by date or service name.
  • Trace Details: Analyze individual traces, including timelines, annotations, and attributes. LMT

Use the filters to narrow down the trace list:​

  • Date: Select a specific date range.
  • Service Name: Filter traces by service name (e.g., Authentication, Storage). LMT

Using AI to Query Tracing Information​

Open the Ask AI panel on the right. LMT Click on a trace entry to view its details.

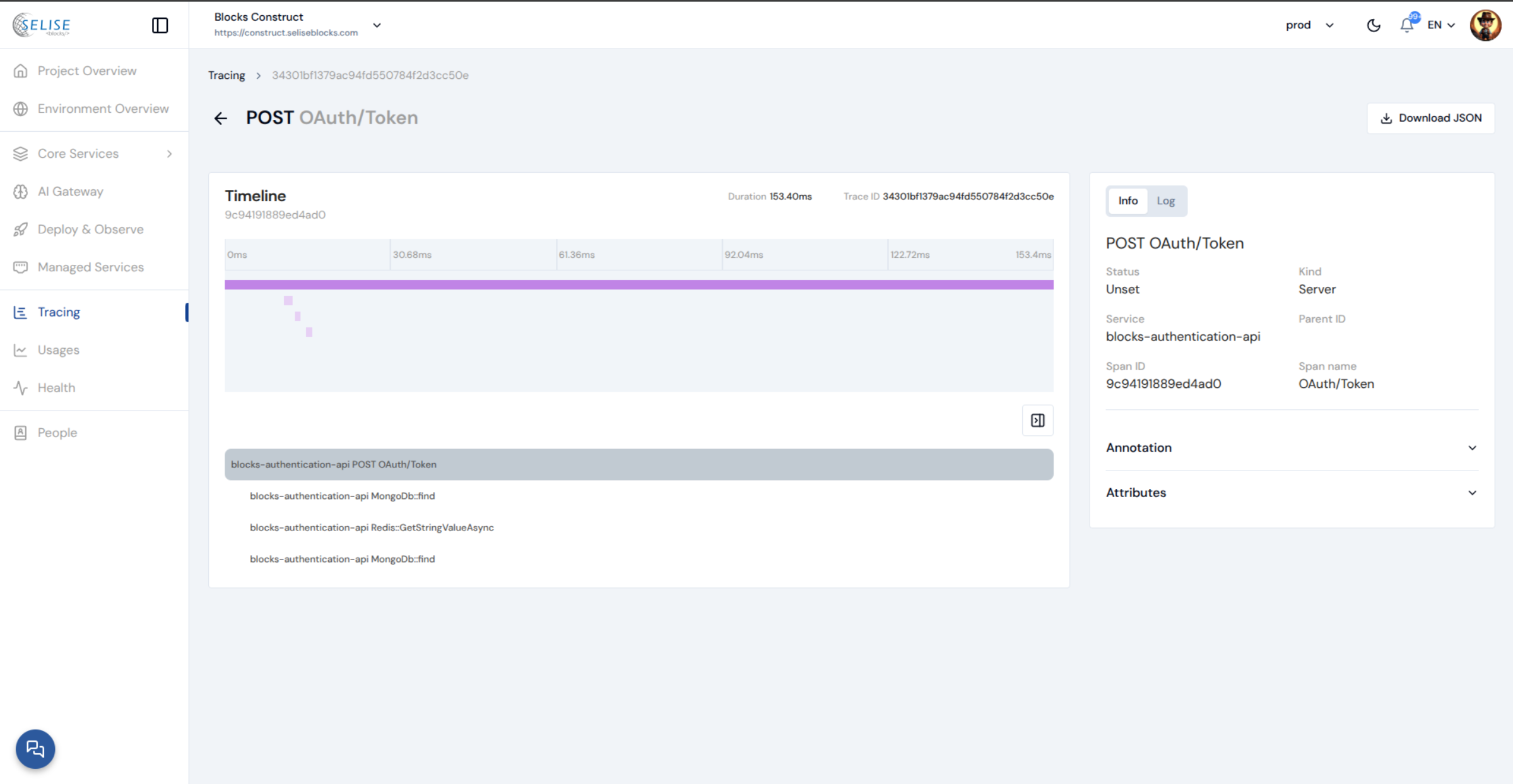

Analyzing Trace Details​

Select a trace from the list.

View the timeline to analyze request durations and dependencies.

Check the Info tab for key details:

  • Status: Success, Error, etc.
  • Service: The service that generated the trace.
  • Span ID: Unique identifier for the trace span.

Use the Log tab to view logs associated with the trace.
